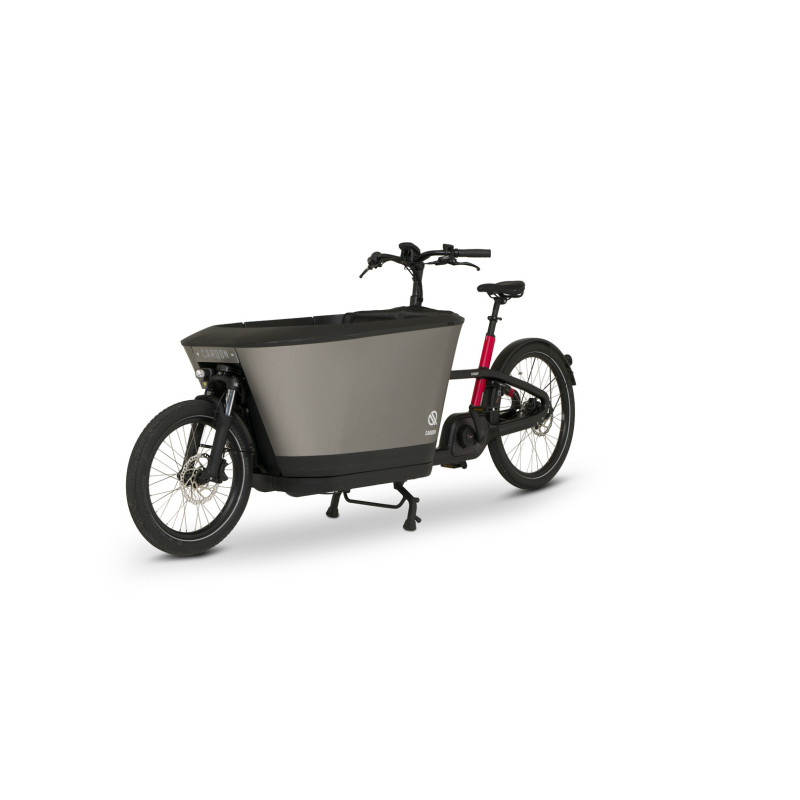

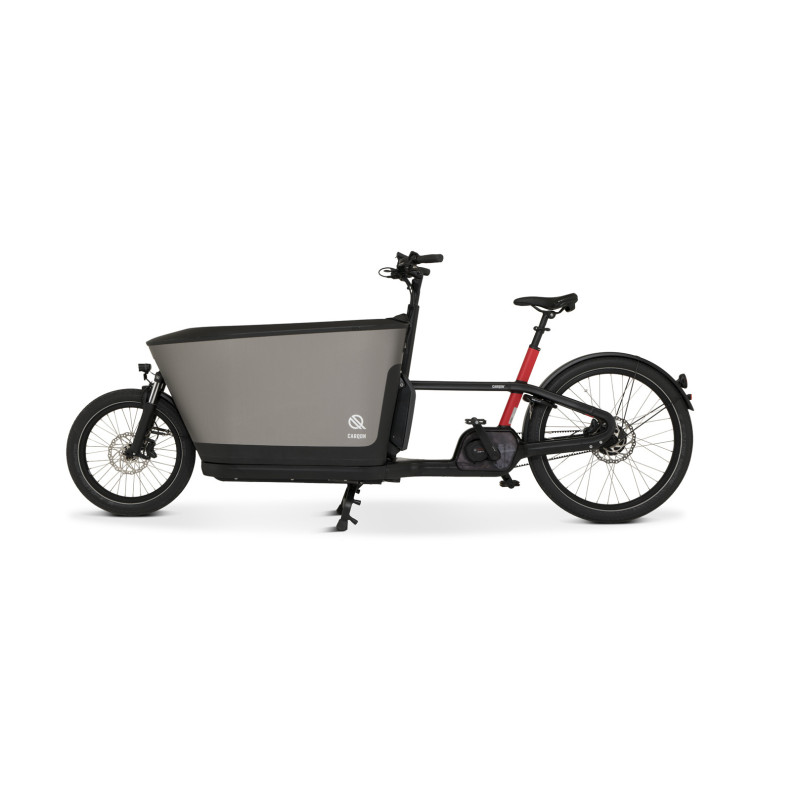

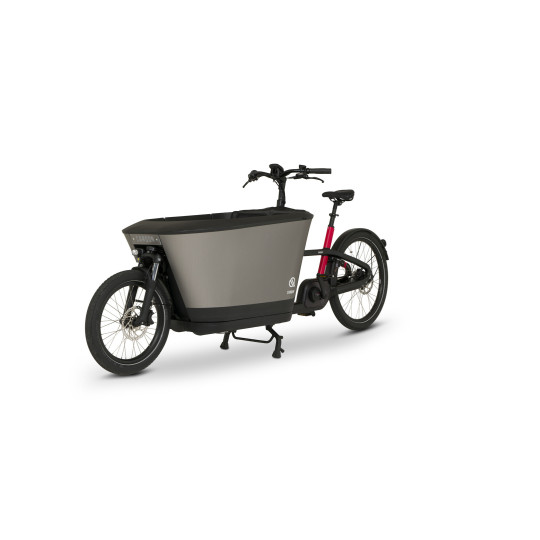

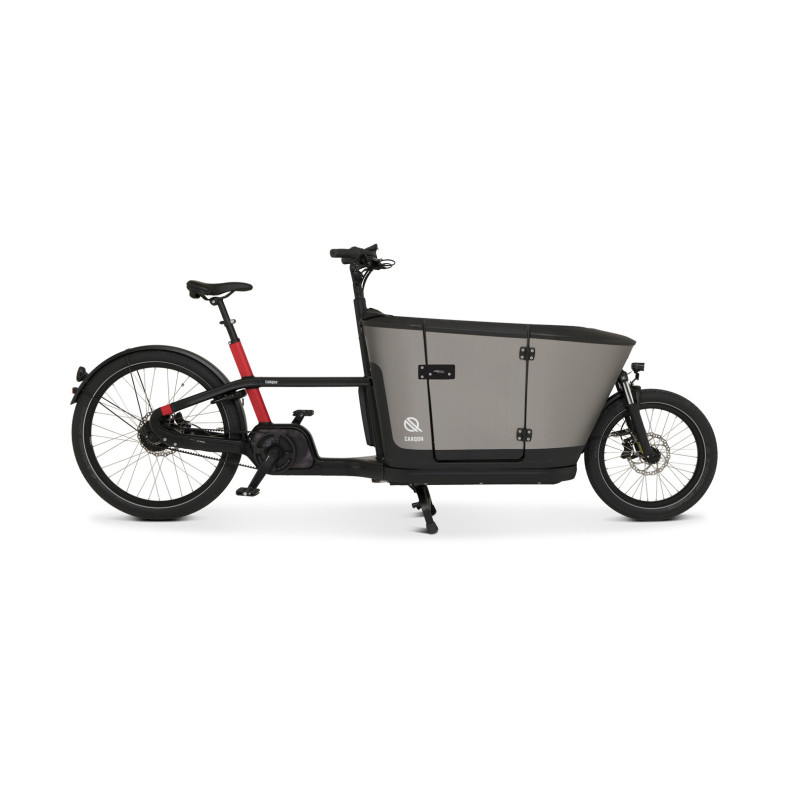

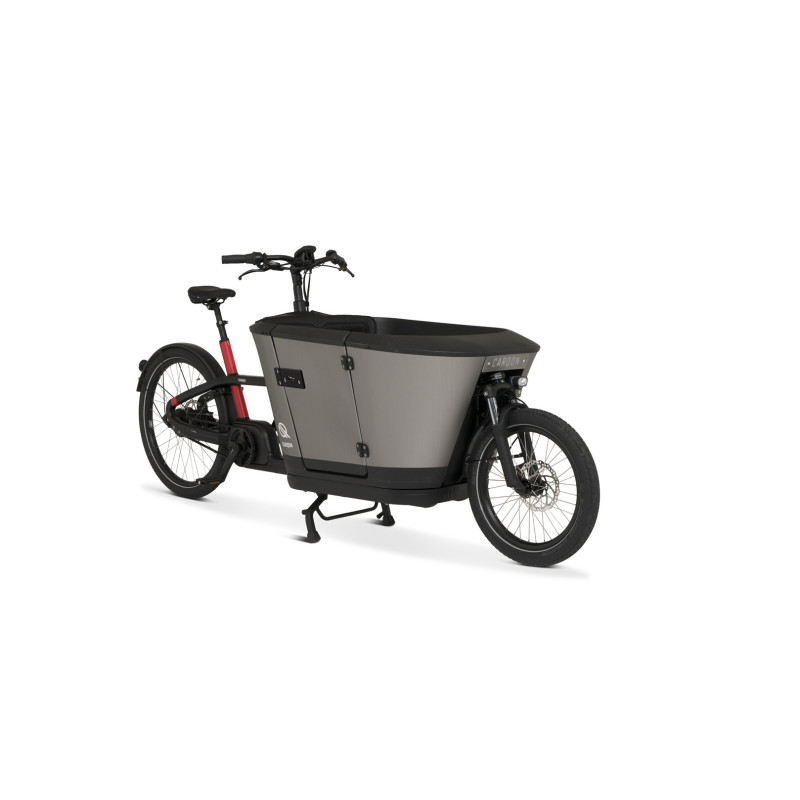

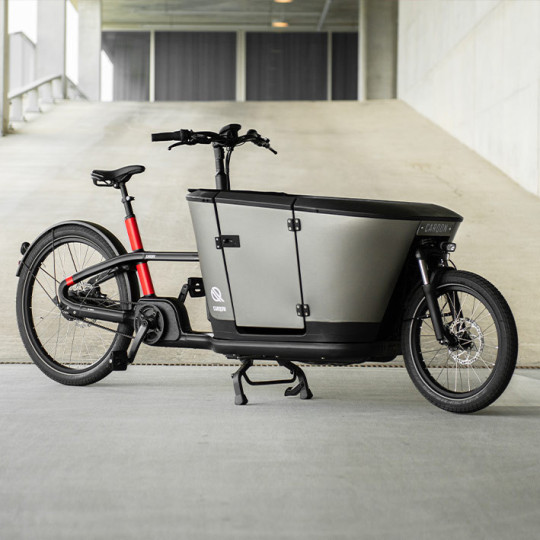

CarQon Classic cargo bike

Carqon Classic – The ultimate electric cargo bike

The Carqon Classic is designed for ultimate ease of use and comfort. Thanks to the special child door, children can easily get in and out independently.

Cycling with the Carqon Classic is effortless thanks to the powerful Bosch Performance CX Cargoline mid-engine, which provides support up to 25 km/h. Choose one or two Bosch batteries of 400 or 500 watts, with a range of 40 to 70 kilometers per battery. This makes the Carqon Classic an attractive, sustainable alternative to the car.

Shifting is smooth and seamless thanks to the Enviolo continuously variable hub gear, in combination with the silent, low-maintenance Gates belt. Those who want extra sportiness and control can opt for the Shimano Deore XT derailleur with the durable KMC chain.
Key features

✔ Stylish, high-quality HDPE body
✔ Powerful Bosch mid-motor

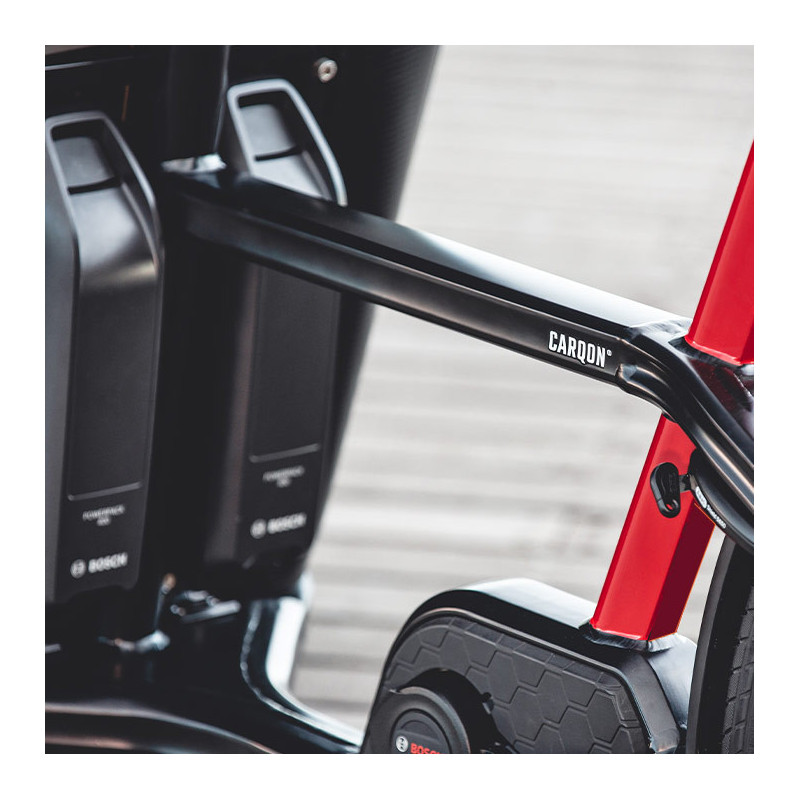

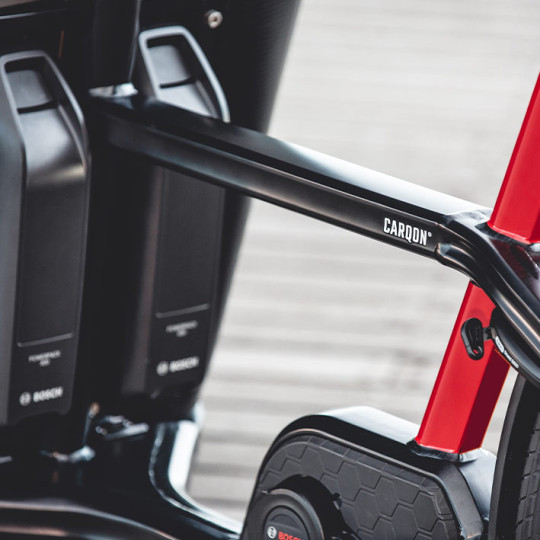

✔ Option for one or two Bosch batteries

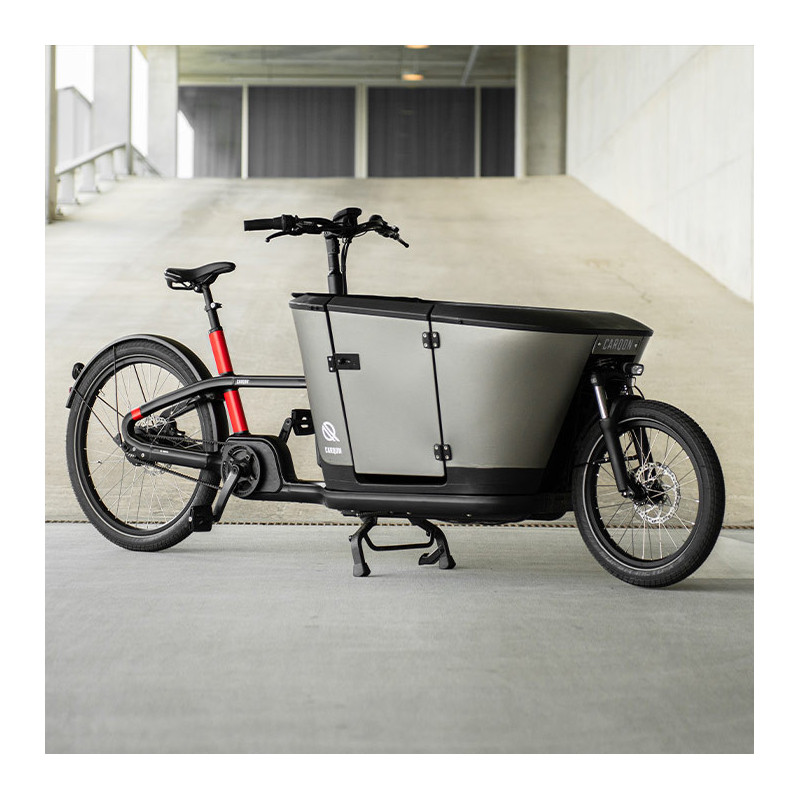

✔ Child door for independent entry and exit
✔ Comfortable suspension with front fork and XL tires
✔ Unique design in four different color schemes
✔ Direct, responsive steering with dual cable steering

Specifications

Frame and construction
Color (commercial): Black/Red
Frame material: Aluminum (DST)
Frame type: Uni
Frame height: 48 cm
Weight without battery: 59.4 kg
Weight commercial: 62 kg
Finish: Matt powder coating
Luggage carrier: Optional
Front fork: Suspension (Suntour SF20-MOBIE)

Gears and drive
Gear: Enviolo (hub gear, trekking)
Number of gears: 1
Cassette: KMC
Crank: Miranda
Automatic transmission: No
Chain: Gates
Shifter: Enviolo Twist Display PRO

Brake system
Front brake: Hydraulic disc brake (Tektro)
Rear brake: Hydraulic disc brake (Tektro Dorado 4 Piston)

Lighting
Dynamo: None
Rear light: Spanninga O-GUARD XE
Front light: Spanninga

Electrical components
E-bike system: Bosch
Battery: Bosch Li-ION (400 or 500 Wh)
Battery location: On frame, removable
Battery weight: 2.75 kg
Range: 40 - 70 km per battery
Display: Bosch Intuvia (removable, handlebar control)
Motor: Bosch Performance CX Line (85 Nm, mid-motor)
Pedal assistance: 4 settings
Sensor: Pedal force & speed
Walk Assist: Yes

Wheels and tires
Rear hub: Enviolo Trekking Disc
Tires: Schwalbe (anti-puncture)

Accessories
Bell: Yes
Lock: ABUS ring lock (suitable for plug-in cable)
Standard: Two-leg standard
